EB3G3

Colour

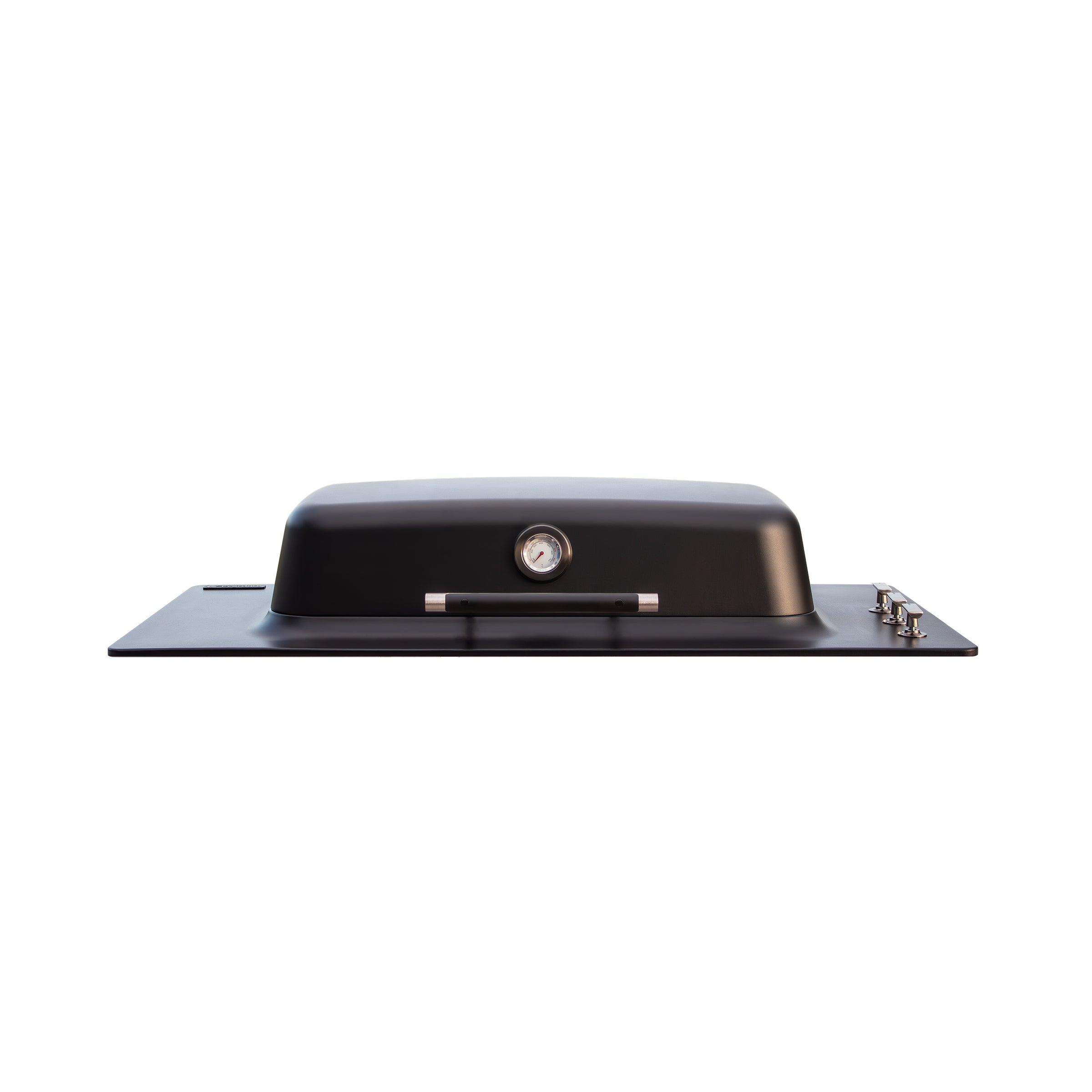

Power and versatility, built in

POWERFUL 3-BURNER BUILT-IN GAS GRILL

The Built-in FURNACE is designed to bring powerful performance and modern style to your custom outdoor kitchen. With 27,000 BTU | 29.1MJ | 9.6kW across three independently controlled burners, it heats quickly and delivers consistent results, from fast searing to weekend roasts.

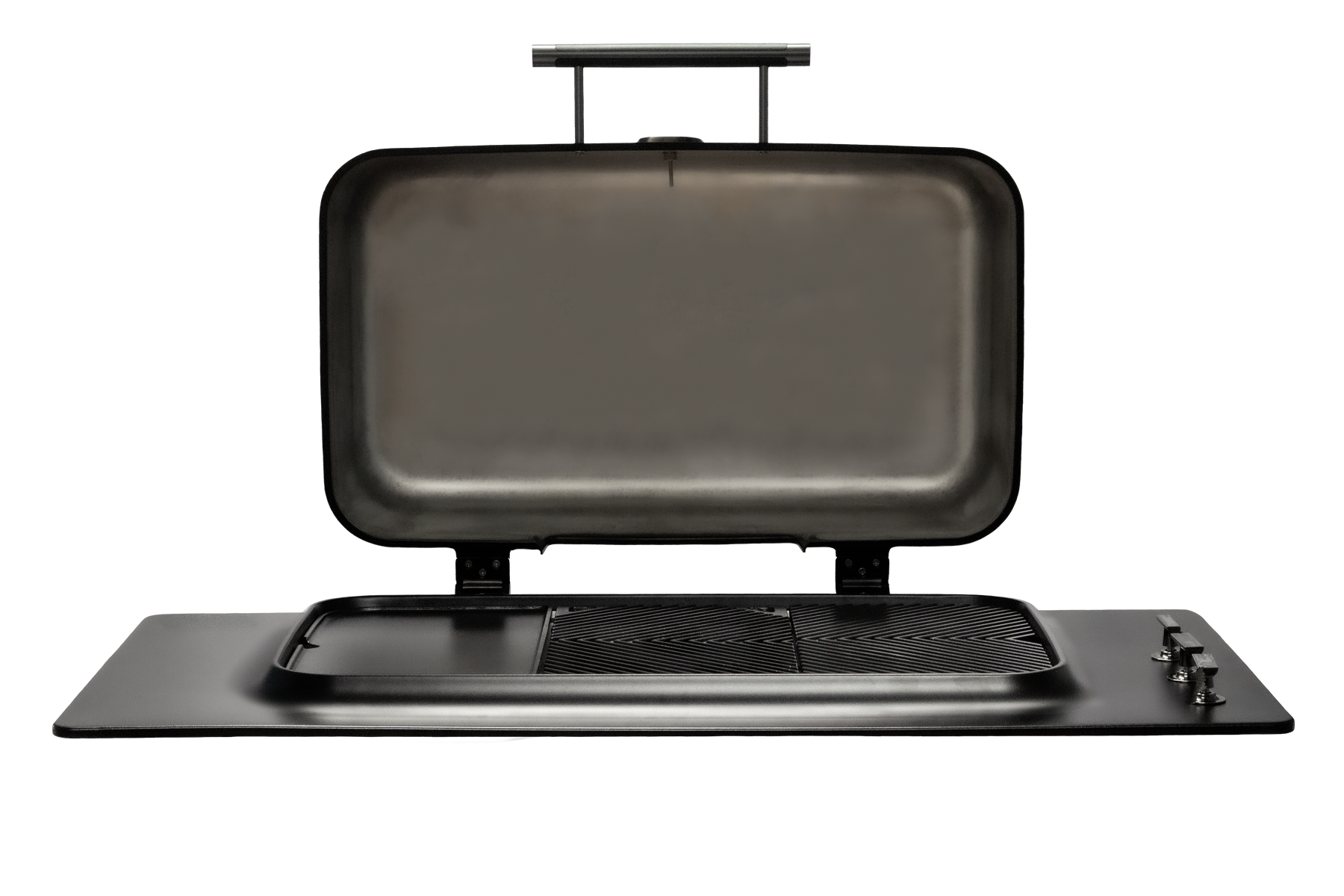

The high hood allows you to grill with the hood up or create convection cooking with 360° heat circulation. Interchangeable vitreous enamel cast iron grills and flat plates* add flexibility, while optional accessories like the teppanyaki and rotisserie kits expand your cooking possibilities.

Crafted with premium materials, the Built-in FURNACE combines a die-cast aluminium hood, 304 stainless steel firebox, and black powder-coated aluminised steel outer housing. Four adjustable mounting brackets make installation straightforward, ensuring seamless integration into your outdoor kitchen.

The Built-in FURNACE is sleek, powerful, and designed to complement your custom outdoor kitchen.


Color in images may differ slightly from product.
*Original FURNACE grills and plates are not compatible with the Built-in FURNACE

• Delivers a total of 27,000 BTU | 29.1MJ | 9.6kW of power through three 304 stainless steel burners independently controlled by ergonomic taps
• Fast & powerful heat. Ideal for roasts and delicate food.
• Direct grilling to convection cooking – 360° heat circulation
• Large versatile 463.45in² | 2990cm² cooking area with interchangeable vitreous enamel grills & flat plates*.
• Flame tamers integrated into the vitreous enamel cast iron grills
• Die-cast aluminum hood with a UV-resistant paint
• Black powder coated aluminized steel outer housing
• 304 stainless steel firebox
• Easy to remove drip tray
• Four easy to use adjustable mounting brackets
• Compatible with the original FURNACE optional accessories*

Grill Dimensions
• Width: 45.6in | 1158mm
• Depth: 22.83in | 580mm (Hood up: 29.17in | 741mm)
• Height: 14.2in | 361mm (Hood up: 30.87in | 784mm)
• Height above benchtop: 7.99in | 203mm

Island Configuration Dimensions
• Minimum benchtop width: 48.03in | 1220mm
• Minimum benchtop depth: 24.41in | 620mm
• Minimum benchtop height: 33.46in | 850mm

Rear wall / Vertical Surface Configuration Dimensions
• Minimum benchtop width: 48.03in | 1220mm
• Minimum benchtop depth: 30.32in | 770mm
• Minimum benchtop height: 33.46in | 850mm
• Minimum clearance from edge of grill to adjacent wall: 6.69in | 170mm

Cooking capacity: 463.45in² | 2990cm2

• Net weight: 84lbs | 38kg
• Gross weight: 97lbs | 44kg

• 1 x Built-in FURNACE chassis
• 1 x Built-in FURNACE hood
USA
• 1 x Cast iron grill center
• 2 x Cast iron grill (L/R)
• 1 x Teppanyaki kit
• 1 x Hose & regulator (type 1 cylinder connection)
• 1 x Natural gas conversion kit
AUS
• 1 x Cast iron grill center
• 1 x Cast iron grill (L/R)
• 1 x Cast iron flat plate (L/R)
• 1 x Hose & regulator (LCC27 cylinder connection)
EU
• 1 x Cast iron grill center
• 2 x Cast iron grill (L/R)
• 1 x Barbed fitting
UK
• 1 x Cast iron grill center
• 2 x Cast iron grill (L/R)
• 1 x Hose and regulator (Type A127 cylinder connection)
DE
• 1 x Cast iron grill center
• 2 x Cast iron grill (L/R)
• 1 x Hose and regulator (type C31-50 cylinder connection)

Key Features

Powerful Three-Burner Performance
Three independently controlled stainless steel burners deliver a total of 27,000 BTU | 29.1MJ | 9.6kW. Heat up quickly, cook with precision, and enjoy the flexibility to manage multiple dishes at once.

Versatile Cooking Options
Grill with the hood up or master convection cooking with the hood down. Interchangeable cast iron grills and flat plates expand your cooking possibilities, with accessory options like the teppanyaki and rotisserie kits.

Large Cooking Surface
With 463in² | 2990cm² of cooking space, the FURNACE is designed to handle bigger meals, making it ideal for entertaining family and friends.

Premium Materials
A die-cast aluminum hood, 304 stainless steel firebox, and powder-coated outer housing are built to withstand the elements while maintaining a refined look.

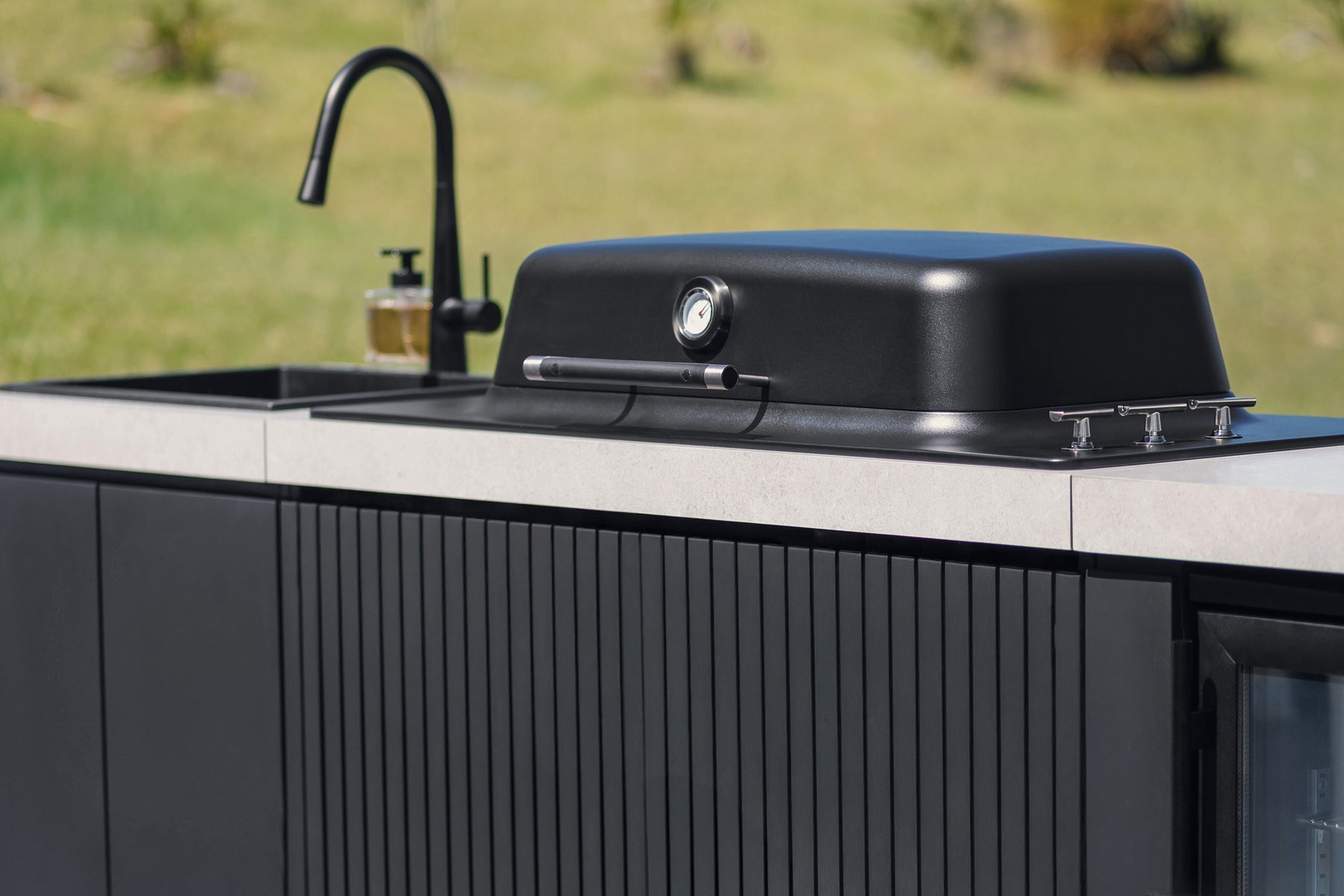

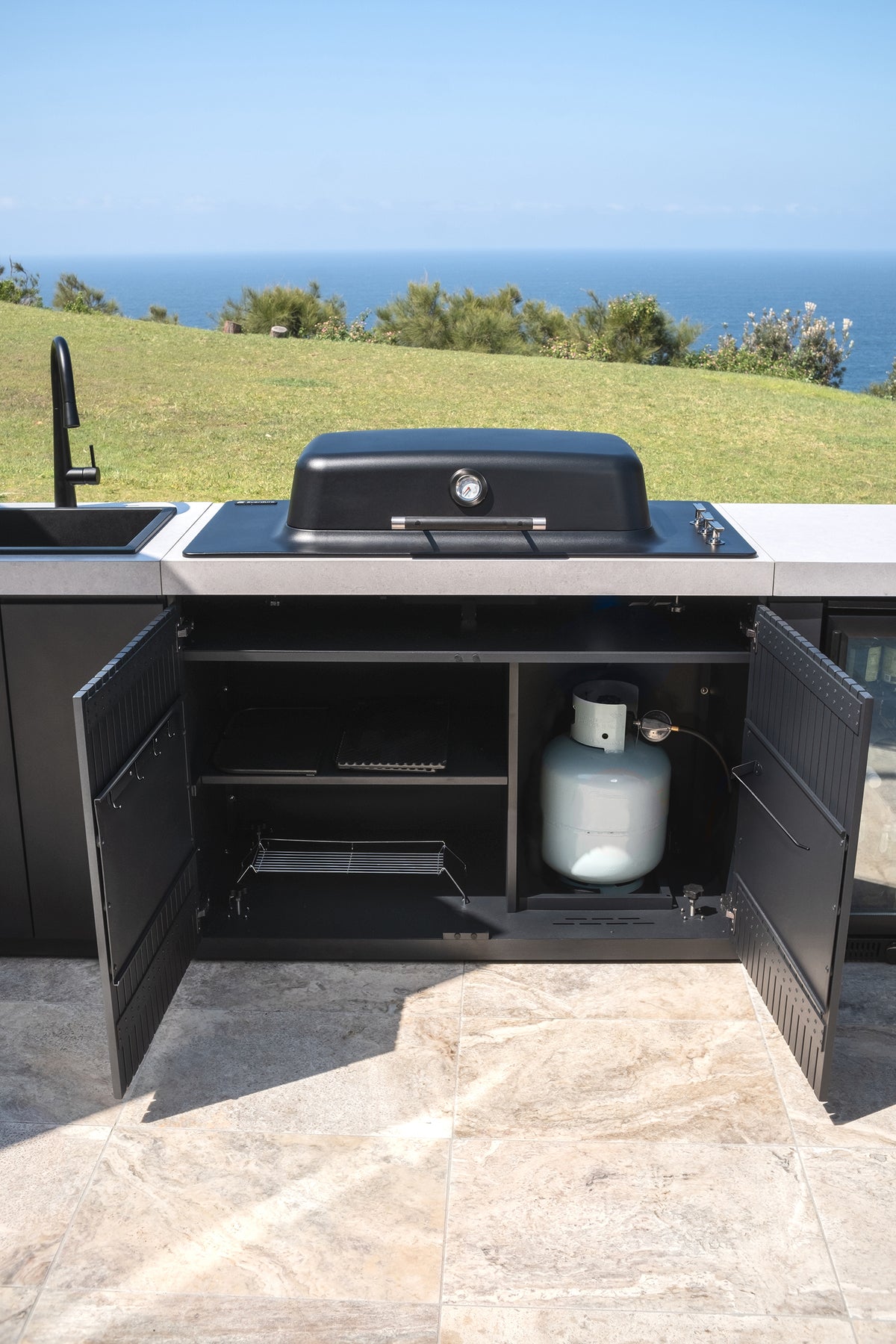

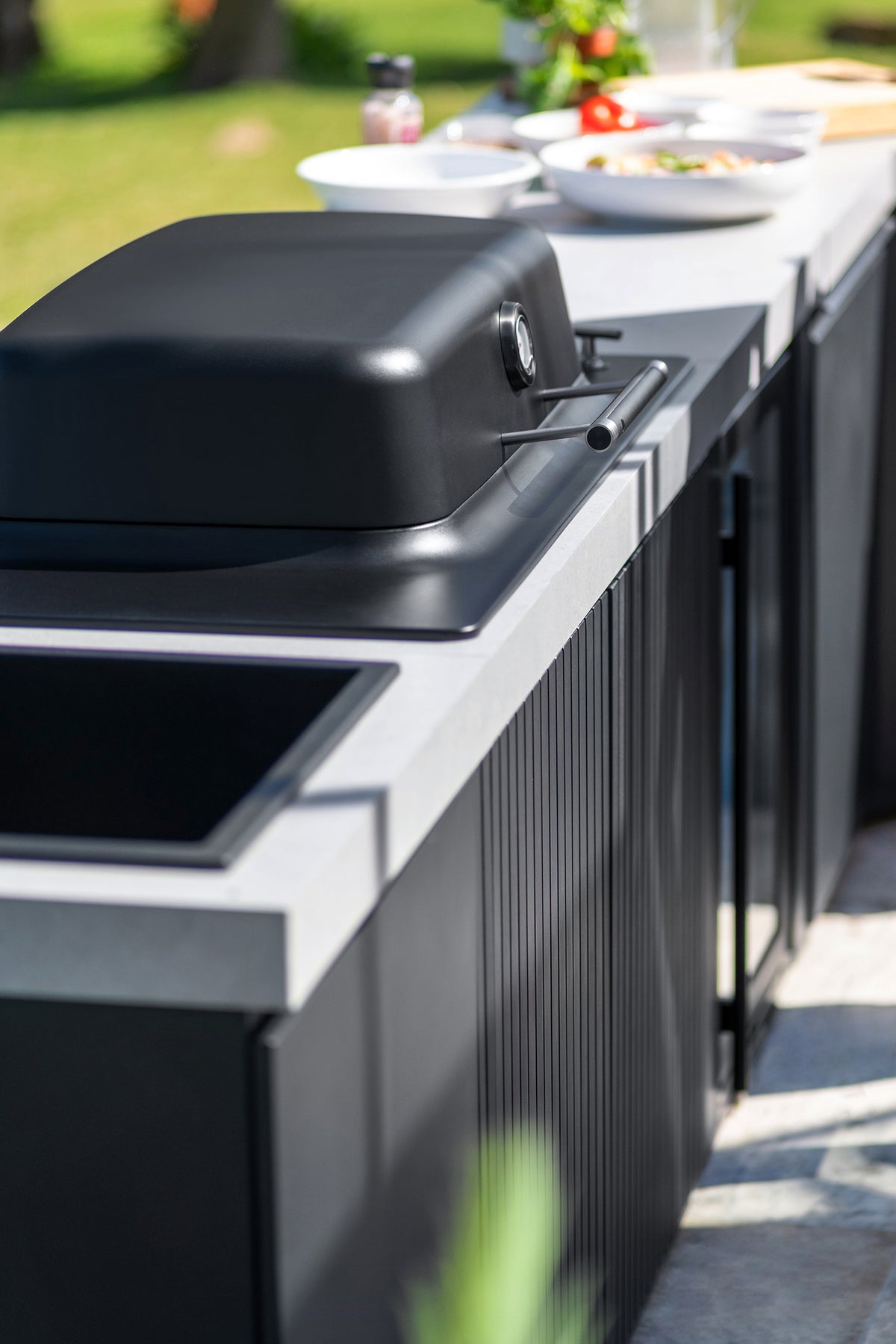

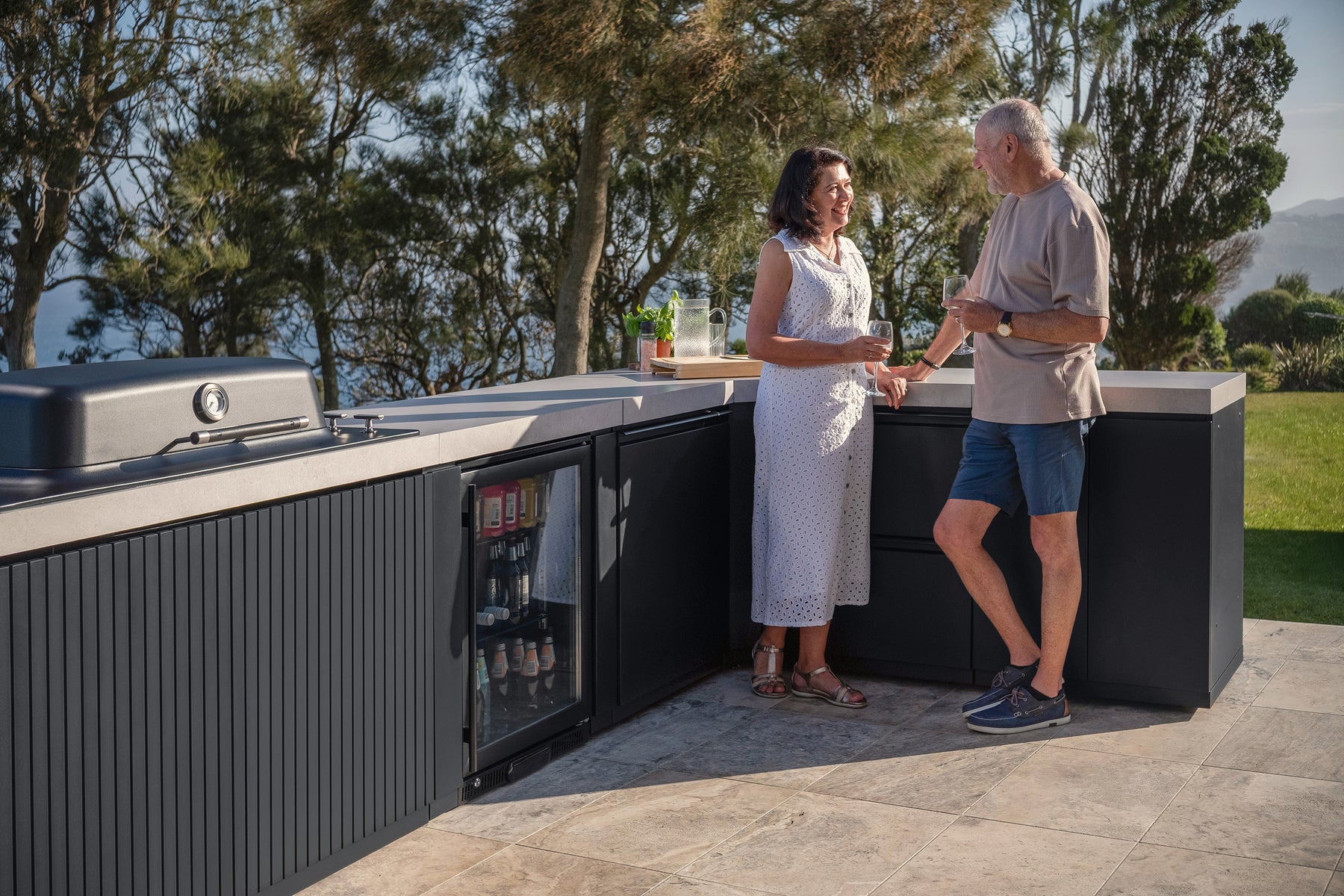

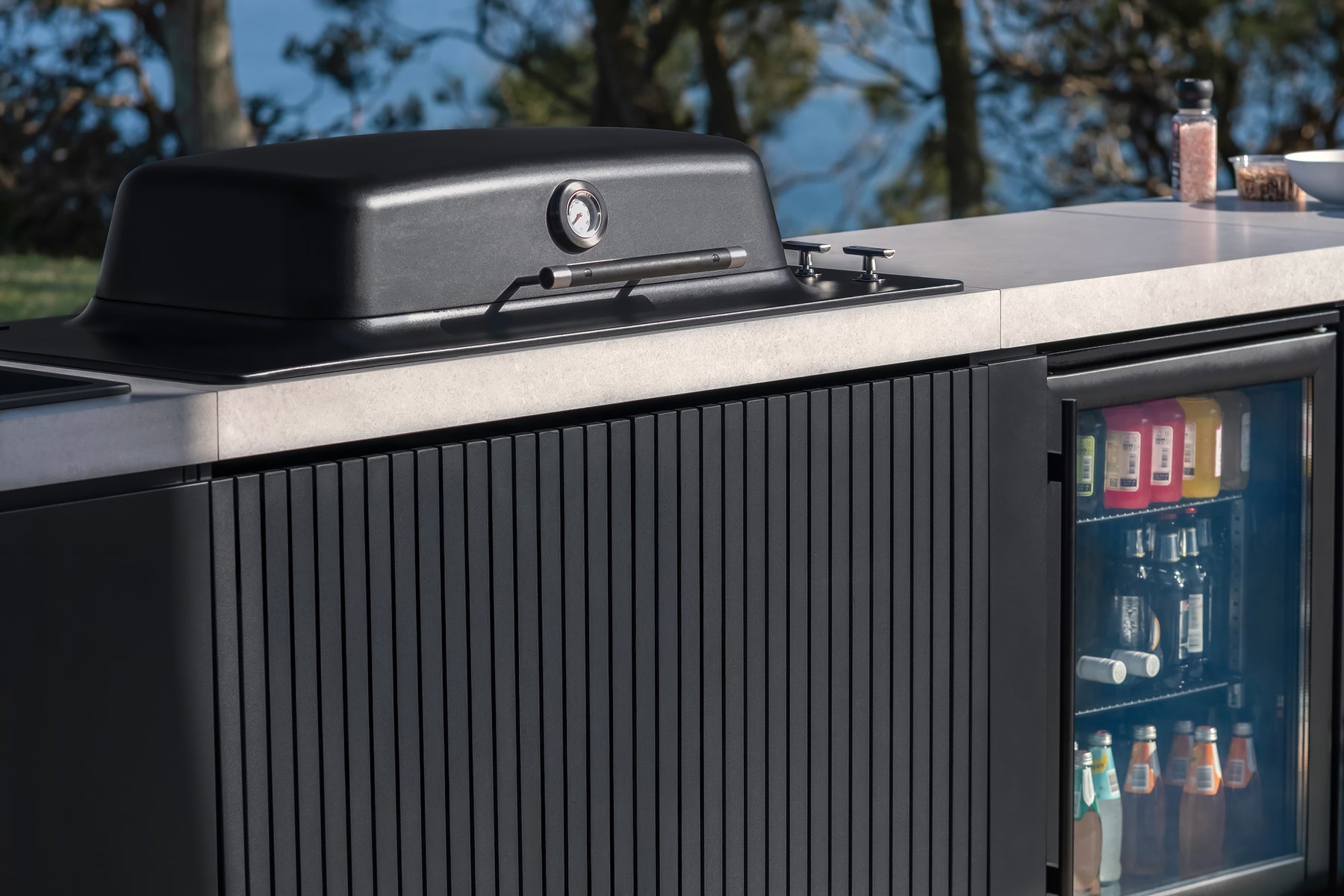

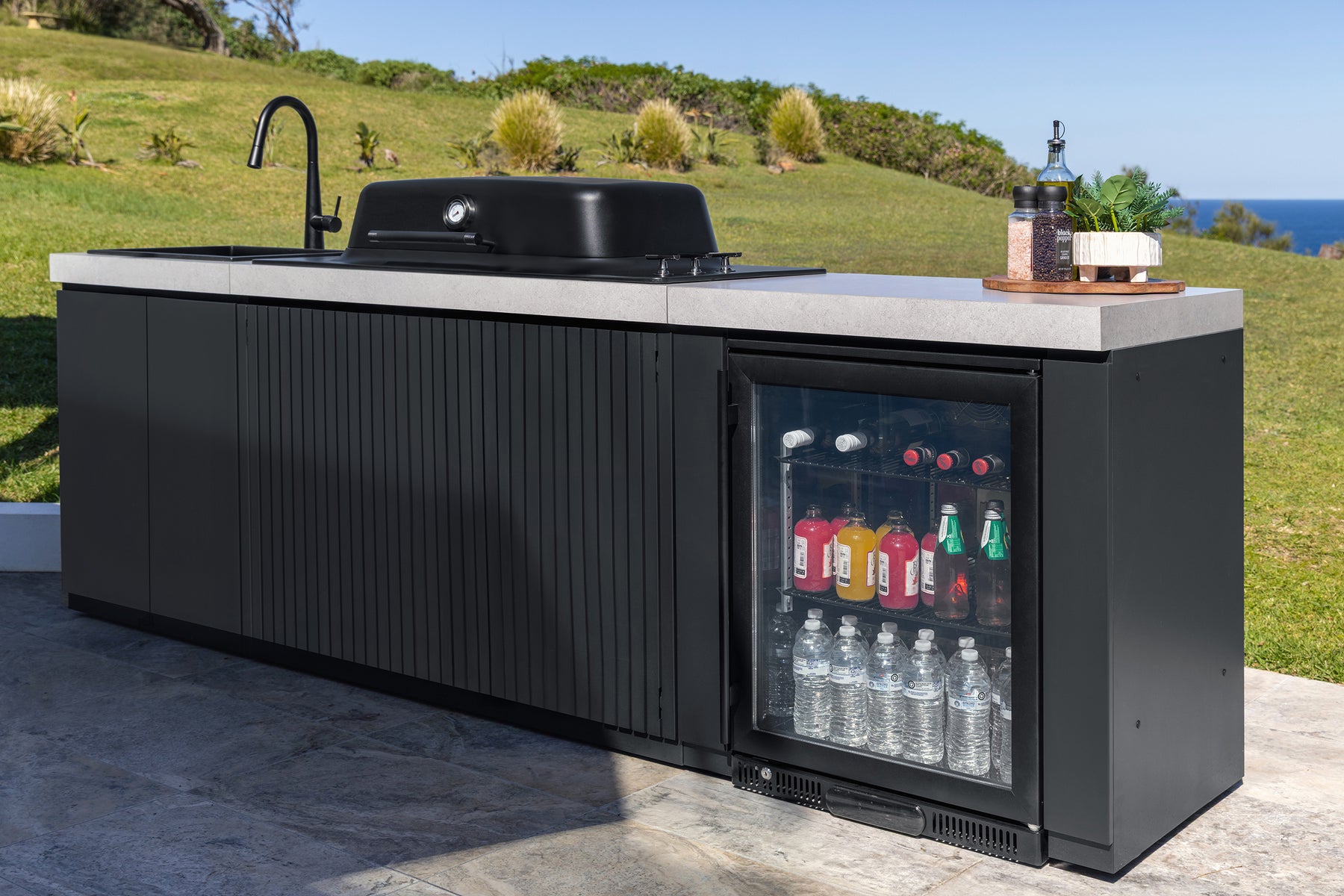

Seabreeze Outdoor Kitchen Integration
Designed to fit seamlessly with the Everdure Seabreeze Outdoor Kitchen, creating a premium, integrated outdoor cooking space.

Effortless Installation
Four adjustable mounting brackets make integration simple, ensuring a secure and professional built-in finish.

How to videos

Built-in FURNACE Deconstructed

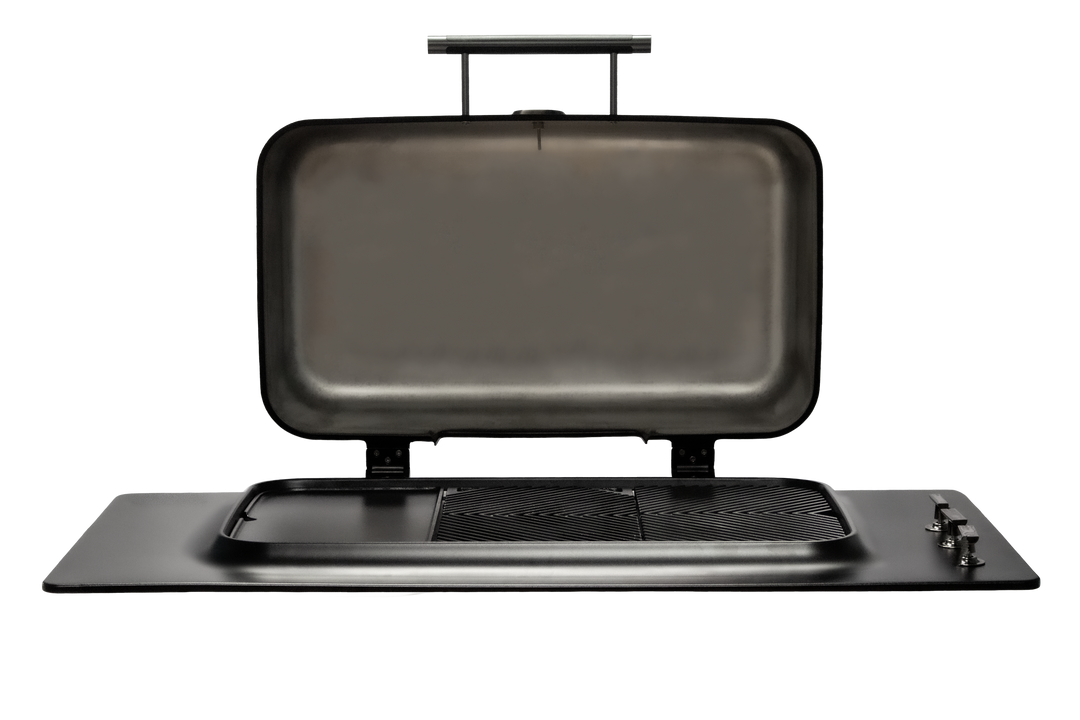

Built-in FURNACE

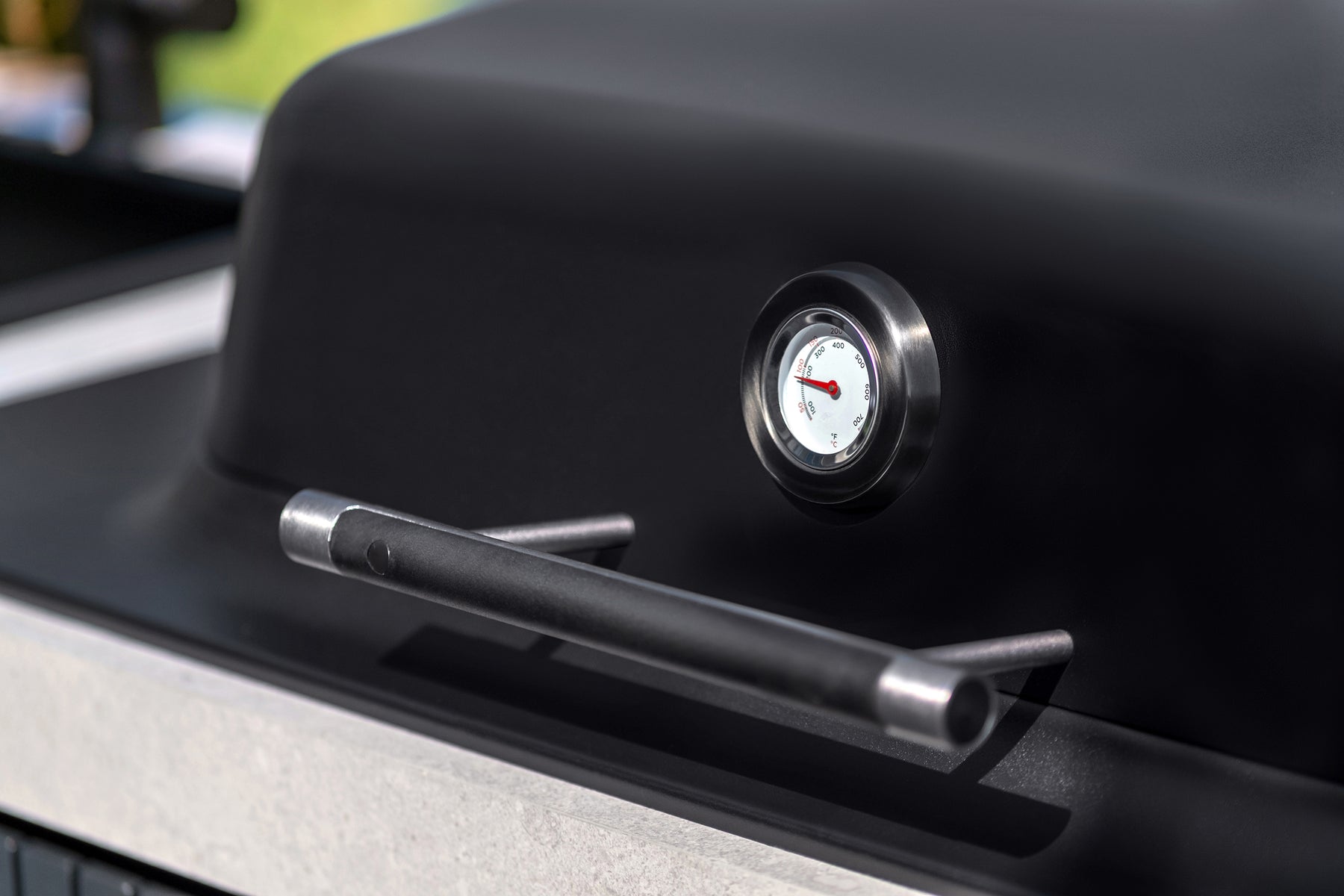

Temperature Gauge

The built-in temperature gauge, in Celsius and Fahrenheit, makes it easy to monitor heat and achieve consistent results.

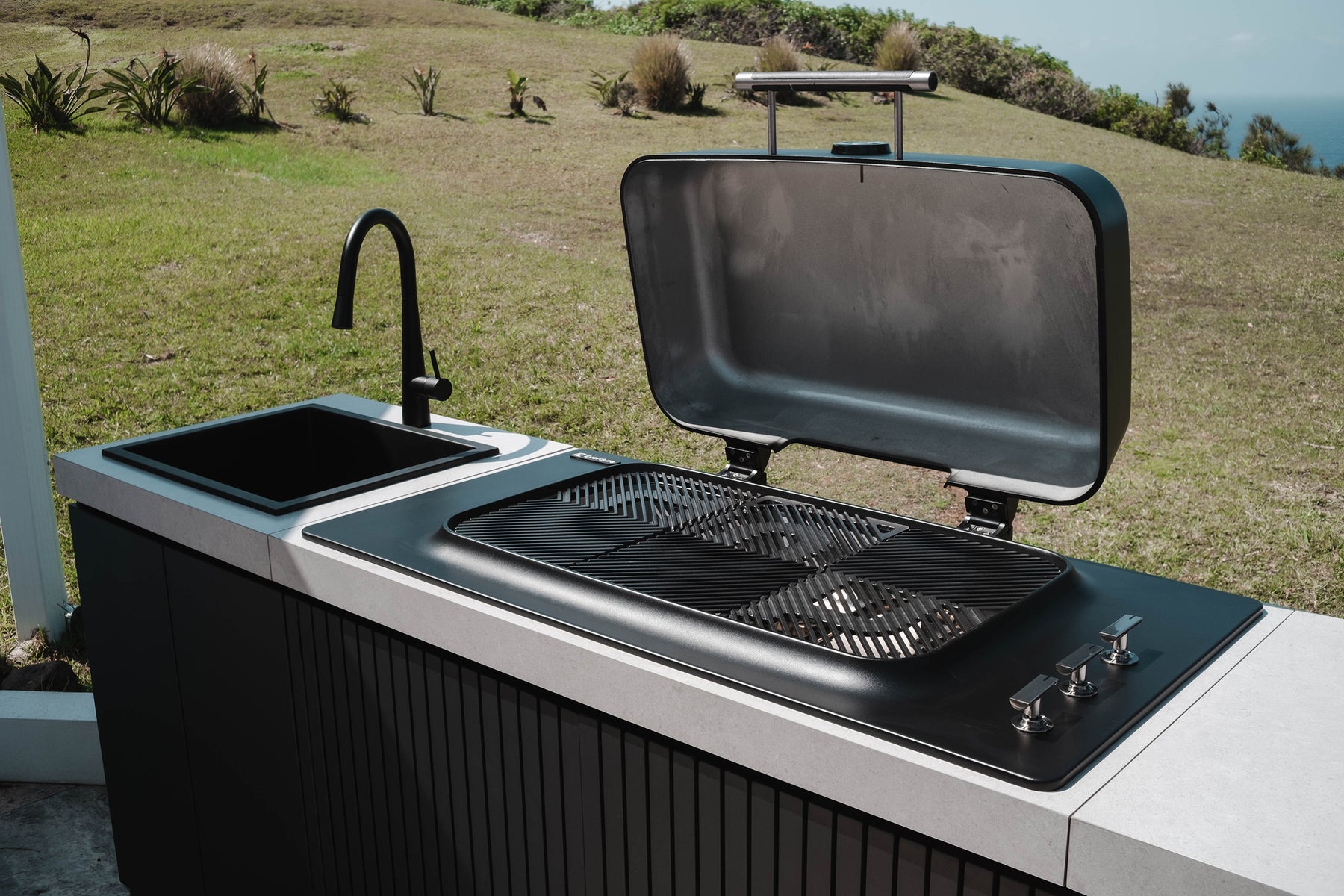

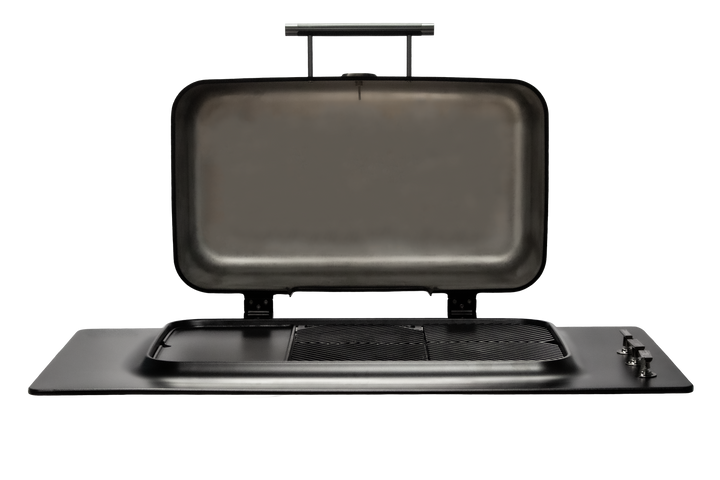

Flexible Grilling

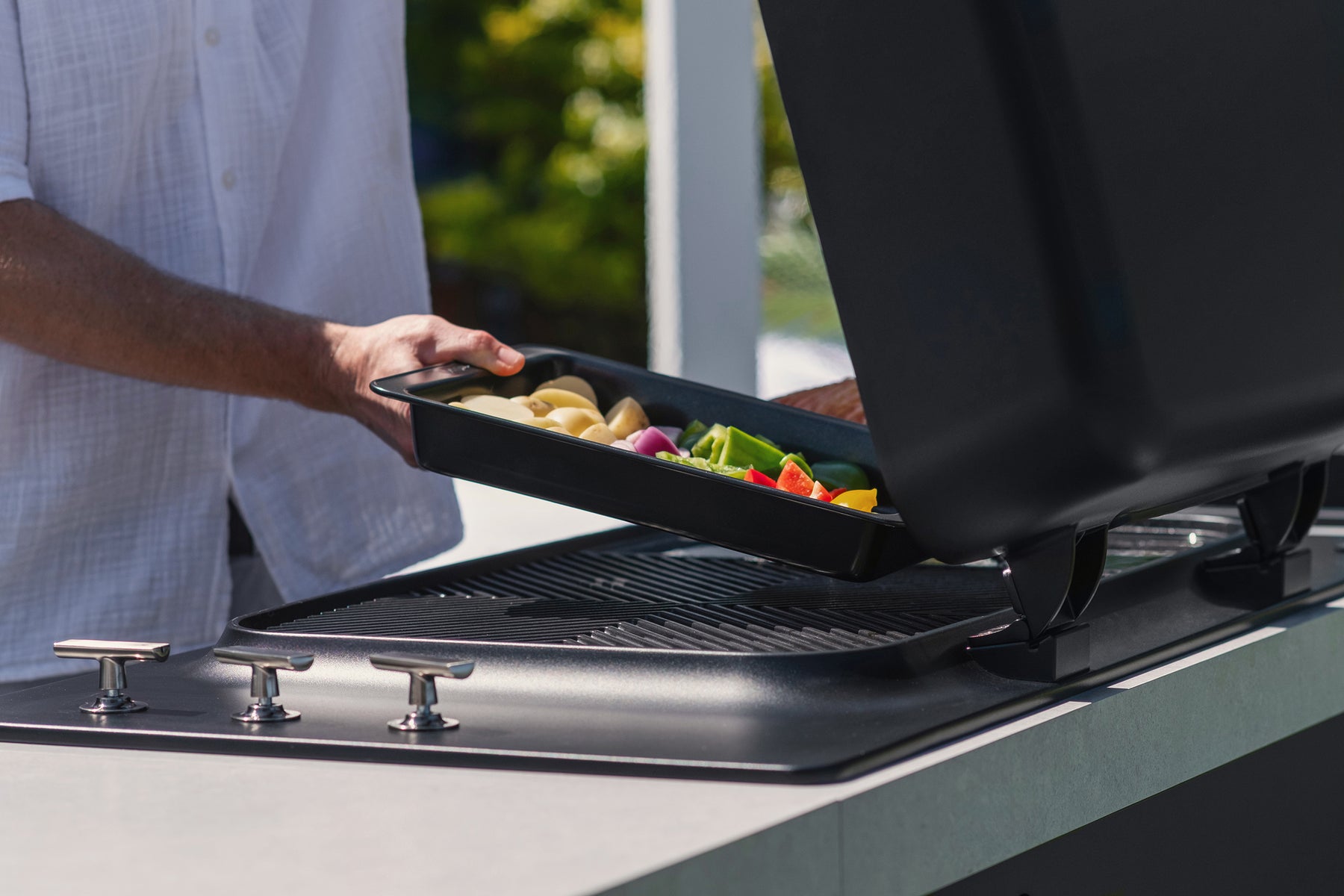

Cook with the hood up for direct grilling or down for convection-style cooking with 360° heat circulation. Expand your options with interchangeable grills, flat plates, and compatible accessories such as the teppanyaki and rotisserie kit.
*Teppanyaki kit is included as standard within the USA.

Fast Heat-Up

With 27,000 BTU of total power, the Built-in FURNACE heats up quickly so you can start cooking without delay.

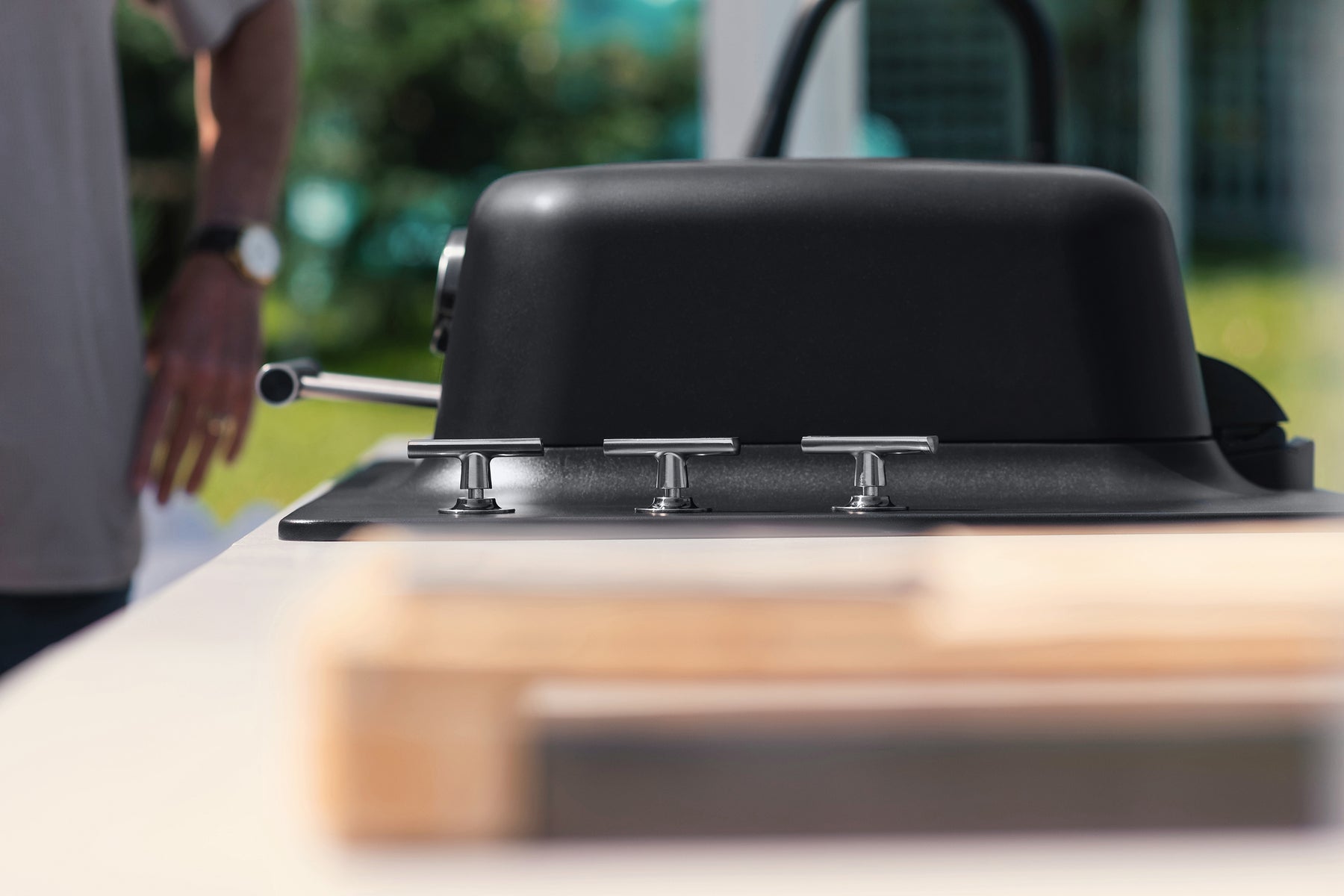

Precise Control

Three independently controlled stainless steel burners with rotary ignition give you precise, variable heat control at your fingertips.

Large Cooking Surface

A 463in² | 2990cm² cooking area provides plenty of room for entertaining. Interchangeable cast iron grills with integrated flame tamers ensure even heat distribution and minimize flare-ups.

Durable and Easy to Clean

Crafted with a die-cast aluminum hood, 304 stainless steel firebox, and powder-coated outer housing. A removable drip tray and smooth surfaces make cleaning straightforward after every cook.

Effortless Installation

Four adjustable mounting brackets make integration simple, ensuring a secure and professional built-in finish in your outdoor kitchen.

FAQs

Refer to the user manual

Please refer to our YouTube video demonstration for how to roast

Please refer to our YouTube video demonstration for seasoning your grill plates

It is recommended to season your grills before the first use and re-season as needed.

Refer to the user manual

No, these are not necessary. The FURNACE grill plate is designed with an integrated flame tamer. This stops oils and juices from falling directly onto the burners which will help reduce flare ups.

Yes, the rotisserie is an optional accessory available to fit with the Built-in FURNACE. Check with stockists in your area to confirm product availability. Information about the rotisserie kit can be found.
Please refer to our YouTube video demonstration on how to use the rotisserie.

Metal tools can be used however there is a risk that incorrect use could scratch the surface of the vitreous enamel grill / plates causing damage. If you wish to use metal tools take care and use caution.

The Built-in FURNACE can be converted for use with natural gas with the natural gas conversion kit. Check with stockists in your area to confirm product availability.
To note, conversion of any grill from ULPG / propane to natural gas (or vice versa) must be done by a licensed gas fitter/technician.

Before cleaning, ensure the built-in FURNACE has fully cooled. Use mild detergent, warm water, and a soft cloth or non-abrasive scourer for general cleaning of the exterior and internal surfaces. Avoid using phosphoric-based cleaners, as they may damage the finish. For tougher areas, a gentle bicarbonate soda paste can be used. Always dry the surfaces thoroughly after cleaning to maintain the appearance and longevity of your appliance.

Putting the grills or plates in the dishwasher is not recommended.

Basic Troubleshooting information on the Built-in FURNACE can be found within the user manual.
